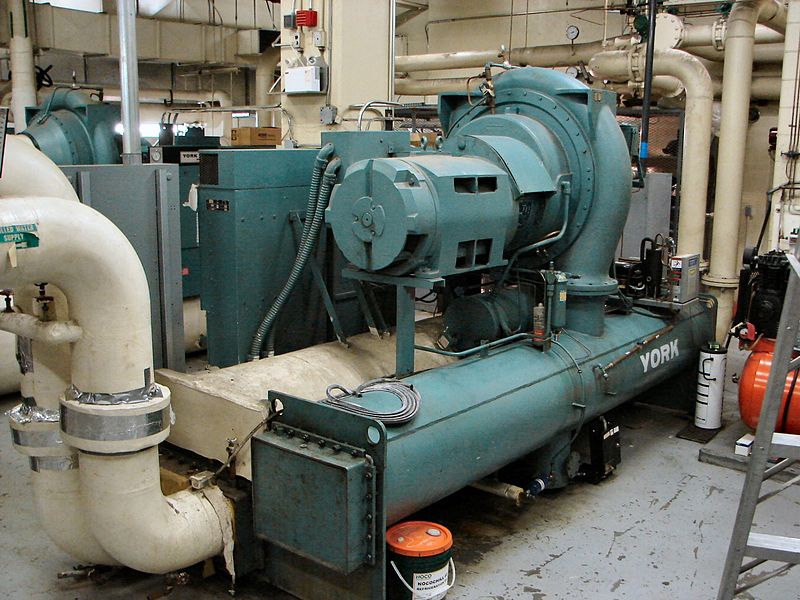

Key Components of Water-Cooled Scroll Chillers:
· Scroll Compressors:
Scroll compressors, the heart of the chiller’s operation, are essential to the refrigerant’s compression. Scroll compressors, as opposed to traditional piston compressors, are made up of two spiral-shaped parts, one stationary and the other rotating. The refrigerant is compressed as the revolving scroll moves because it traps and progressively reduces the volume of the refrigerant gas. This compression process is efficient, silent, and has fewer moving parts than other methods, which increases reliability and lowers maintenance needs.
· Evaporator:
Water-cooled scroll chillers have an evaporator that collects heat from the water as it runs through the chiller. The liquid refrigerant enters the evaporator after being compressed and raised to a high pressure. Refrigerant absorbs heat from the water as it passes through the evaporator, evaporating and turning into a gas. To achieve the required cooling effect, the now-cooled water is subsequently pumped into the system’s cooling loops.
· Condenser:
After absorbing heat in the evaporator, the refrigerant releases the heat it has absorbed to a cooling medium in the condenser, where it is now in its gaseous condition. Water serves as this cooling medium in water-cooled chillers. In order to remove heat from the refrigerant and cause it to condense back into a liquid condition, the condenser usually uses a cooling tower to circulate water. Because water has a greater capacity for heat transmission than air, it can cool more effectively, making this process extremely efficient.
· Expansion Valve:
The refrigerant goes via an expansion valve upon its recondensation back into a liquid state. Before the refrigerant enters the evaporator again, this part lowers its temperature and pressure. The expansion valve maximises the cooling efficiency of the chiller by regulating the flow of refrigerant into the evaporator, which maintains the proper balance between temperature and pressure.
The Cooling Cycle:
The four primary phases of the continuous refrigeration cycle—compression, condensation, expansion, and evaporation—are the foundation of a water-cooled scroll chiller’s functioning. The refrigerant gas enters the scroll compressor during the compression stage, where it is compressed to increase its temperature and pressure.
The high-pressure refrigerant gas enters the condenser during the condensation stage, where it releases its heat into the cooling water and transforms into a high-pressure liquid. In order to make the refrigerant cold enough to absorb heat in the evaporator during the final evaporation stage, the expansion step subsequently lowers the refrigerant’s temperature and pressure.
Applications and Advantages:
In environments where dependable, effective cooling is crucial, water-cooled scroll chillers are frequently utilised. Large commercial buildings, data centres, and industrial processes where accurate temperature control is essential frequently use them. They are perfect for spaces where noise and space are significant factors because of their small size and silent functioning. In addition, scroll compressors have less wear and tear, cheaper maintenance costs, and energy efficiency when compared to other compressor types.
The continuous cycle of refrigerant compression, heat exchange, and expansion powers water-cooled scroll chillers. The use of water as the cooling medium in the condenser of water-cooled scroll chillers is one of its distinguishing characteristics from air-cooled chillers, which use ambient air. Because water is a more efficient medium for heat absorption and transfer than air, water-cooled chillers are often more efficient, particularly in large-scale applications.
Because of their efficiency, water-cooled chillers can run at lower condensing temperatures, which lowers the compressor’s energy consumption and improves system performance as a whole. They are a well-liked choice in commercial and industrial settings because of their capacity to provide dependable, energy-efficient cooling solutions.
FAQs:
1. How Do Chillers Integrate with Thermal Storage Systems?
Chillers and thermal storage devices, like chilled water tanks or ice storage, cooperate to modify the cooling loads. The chiller produces ice or cools water during off-peak hours, which is subsequently utilised during periods of high demand. By taking advantage of cheaper electricity rates during off-peak hours, this integration aids in lowering energy expenses and managing peak loads.
2. What Effects Does Chiller Load Matching Have on System Performance?
Aligning the chiller capacity with the actual cooling demand is known as load matching. By ensuring that chillers run within their most efficient range, proper load matching lowers energy consumption and operating expenses. Proper size selection and precise load estimations are crucial because inefficient chillers can result from either over- or undersized chillers.
3. What Are the Latest Innovations in Chiller Technology?
Magnetic bearing compressors are a recent development in chiller technology that increases efficiency by reducing friction and eliminating mechanical contact. IoT and machine learning technologies are being combined with advanced controls to maximise performance and offer predictive maintenance. Furthermore, waste heat is now being used for various purposes, like heating water or space, thanks to heat recovery systems.
4. How Do Chillers Handle Problems With Ice Formation and Condensation?
Chillers use anti-freeze solutions, such as glycol, or other additives in the chilled water loop to prevent freezing, which helps to handle problems with ice development and condensation. Temperature controls and sensors are used to keep an eye on and manage situations that can cause ice to form. In order to manage condensation and stop water build-up, chillers also have draining devices, such as drain pans and automated drainage systems.
5. Which Factors Are Most Important for Redundancy in Chiller Systems?
When designing redundancy into a chiller system, there are a few important things to keep in mind. The N+1 configuration is a popular method that ensures system continuity during maintenance or the failure of a single unit by including at least one extra chiller over the minimum capacity needed to handle peak demand. In the event that a chiller fails, automatic switching controls are also necessary to guarantee smooth functioning.
