Setting up an effective and durable air conditioning system requires installing air conditioning piping. Installing your system correctly increases energy efficiency, reduces the likelihood of malfunctions, and guarantees smooth operation. From design to completion, the following guide will take you through the whole process of installing air conditioning piping, covering important factors and industry best practices.

Basics of Air Conditioning Piping:

It’s critical to comprehend the two primary pipe types used in air conditioning systems before beginning the installation process:

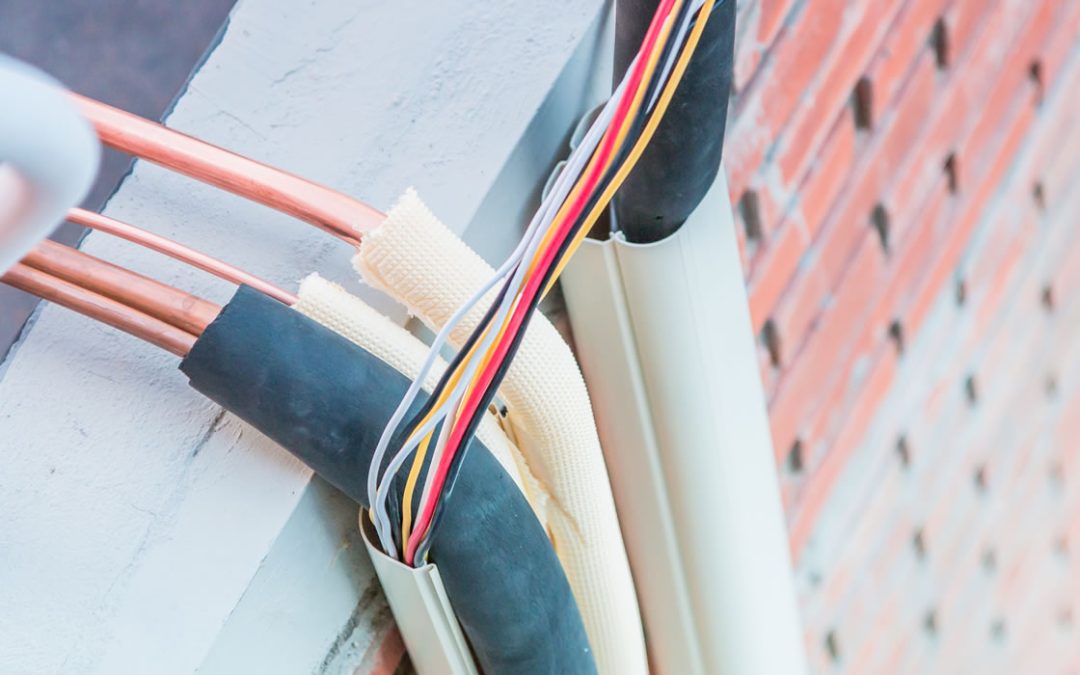

  • Refrigerant pipes: The refrigerant is transported between the exterior and indoor components of your air conditioning system using refrigerant pipes. They are usually composed of copper and are available in two sizes: a smaller liquid line and a bigger suction line.
  • Drain pipes: Condensed water that accumulates throughout the cooling process must be removed by drain pipes. They are essential for keeping your air conditioner operating efficiently and minimizing water damage. They are typically composed of PVC.

To stop leaks, keep the system operating efficiently, and save money on future expensive aircon service prices, both piping systems need to be constructed correctly.

Preparing the Installation:

To prevent future problems, a carefully thought-out piping layout is essential. Careful consideration must be given to where the inside and outdoor cooling units will be placed. Select a location for the outside unit that is not instantly exposed to sunlight and permits adequate airflow. For optimal cooling dispersion, the indoor unit should be positioned in the centre of the space, ideally close to the ceiling.

The piping path needs to be planned after the unit placement is decided. Ideally, to guarantee system efficiency, the refrigerant pipes should take the most direct and quickest route between the two units. Additionally, because they might impede the flow of refrigerant, pipelines should have as few severe bends as possible. To ensure adequate water drainage and prevent water backups, the drain pipe must also be built with a modest downward slope.

Setting Up the Refrigerant Pipe:

There are a few crucial stages involved in installing the refrigerant piping. Measure and cut the copper pipes to the desired length first, making sure the cuts are smooth and clean. The pipes need to be bent in accordance with the route you’ve already chosen after they’ve been cut. Sharp angles must be avoided when bending the pipes because they can lower system efficiency and result in long-term damage.

Once the copper pipes have been bent, flare off the ends to make them ready to be connected. Secure, leak-proof joint connections are made possible by flared ends. Expand the pipe ends with a flaring tool, then use a wrench to tighten the flare nuts that connect the pipes to the air conditioners. For some junctions, soldering may be required for added security. After the pipes are connected, carefully insulate them to avoid condensation and energy loss, which could harm the system and the surrounding areas requiring Mitsubishi air conditioner repair.

Setting Up the Drain Piping:

To avoid water damage and ensure smooth air conditioner operation,  air-con installation of drain piping is just as crucial as refrigerant piping. The PVC pipes should first be cut to the appropriate lengths depending on the separation between the drainage point and the interior unit. To ensure that water flows properly, it is important to install the drain pipe with a regular downward slope.

PVC adhesive or sealer should be used to firmly seal each connection in the drain pipe. This lessens the chance of any leaks causing water damage. To keep any bad smells from being reintroduced into the area, a P-trap may need to be installed in the drain pipe system.

Protecting and Examining the Pipes:

The next stage is to secure the drain and refrigerant pipes and test the system after they have been installed. To stop needless movement or vibration, pipes should be secured to walls or ceilings using pipe clamps or brackets. For long-term dependability, proper fastening is essential because vibration can gradually weaken connections and result in leaks.

It is essential to test for leaks before system usage. Pressurize the piping with nitrogen to look for defects in the refrigerant lines. Then, use a leak detection instrument or a basic soap solution to find any escaping gas. Additionally, fill the drain pan of the indoor unit with water and watch the water flow to test the drainage system. Make sure there are no leaks or obstructions and that the water drains easily.

Final Examination and Commissioning:

The complete installation should be inspected once the pipes have been secured and tested. Examine the refrigerant pipes for any sharp bends or kinks that can impede the refrigerant’s flow. Verify that every joint is leak-free and tight. To stop energy loss, insulation should be in good condition and positioned correctly, especially around copper lines.

Commissioning the system involves turning it on and keeping an eye on its functionality after you are pleased with the installation. Make sure the air conditioner runs efficiently and doesn’t make any odd noises or show any symptoms of malfunction. This will verify that the drain and refrigerant pipes were placed appropriately.

Taking Care of Your Air Conditioning Pipes:

To keep your air conditioning system operating at its best after installation, you must maintain your piping. Check for refrigerant leaks on a regular basis because even little ones can impair system functionality and raise energy expenses. Additionally, to avoid clogs brought on by debris or algae accumulation, the drain pipes should be cleaned on a regular basis.

The refrigerant pipes’ insulation may deteriorate with time, particularly if they are exposed to the outdoors. To keep the system operating efficiently, replace worn-out insulation as soon as possible. Your air conditioner’s longevity and dependability can be increased by paying attention to these maintenance factors.
